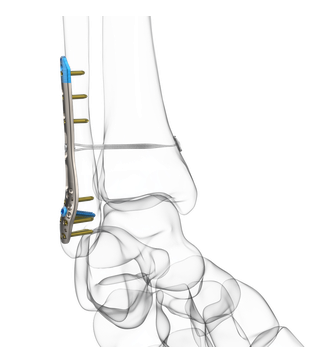

Syndesmosis Ultimate Kit
• AUXILOCK® Syndesmosis Ultimate Kit •

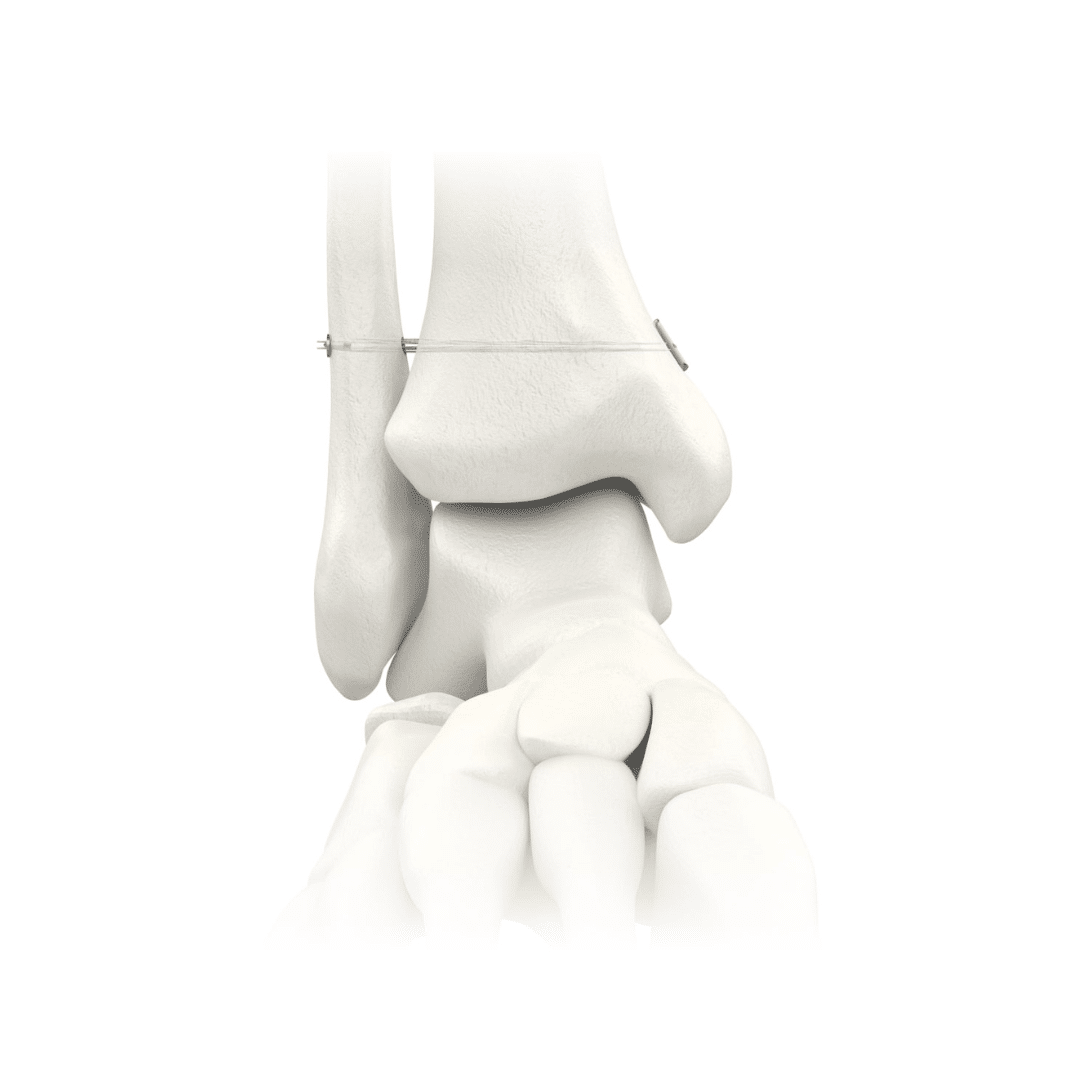

AUXILOCK® Syndesmosis Ultimate Kit can be used for the fixation of Ankle Syndesmosis joint. The versatile design for the kit is ideal for use with our without a fracture plate. The kit is passed through 3.5mm drilling tunnel, from lateral to medial, provides the fixation of oblong shaped button on the medial side and round button on the lateral side of the syndesmosis joint.
PRODUCT FEATURES
Features

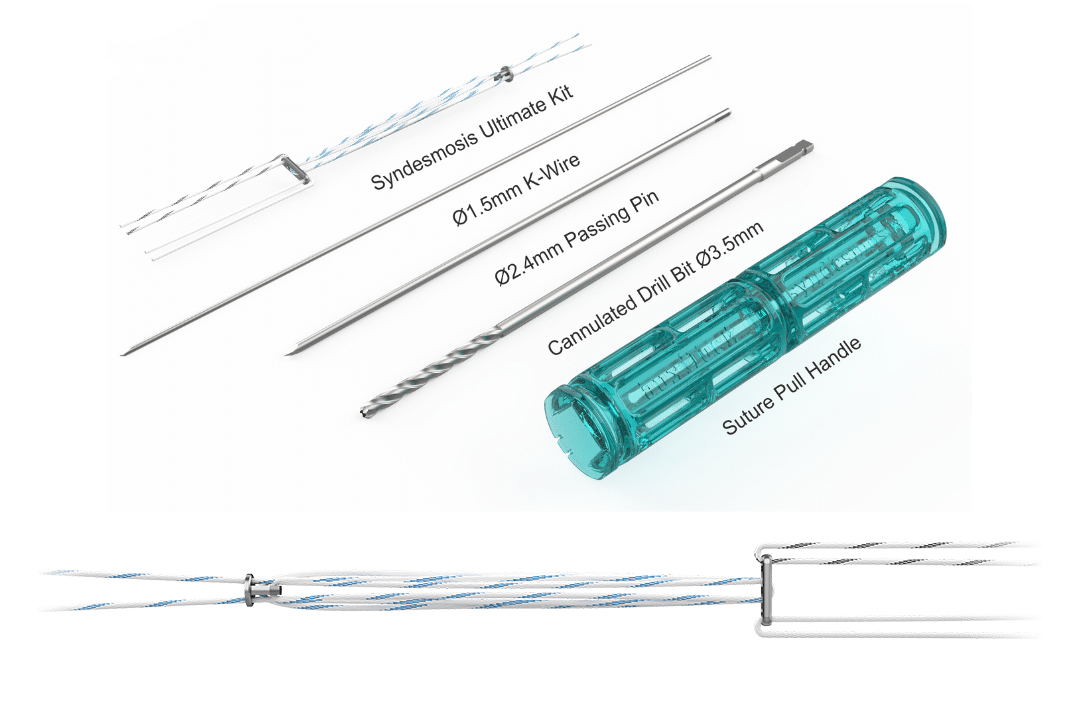

• The kit comprises of adjustable loop with round shaped button (Dia. 5.5mm) and oblong shaped button (L 12mm X W 3.2mm X H 1.5mm).
• The syndesmosis kit provides a double locking mechanism which eliminates the need for knot tying.
• The round button has a tapered slot design which can easily fix on any fracture plate.
The syndesmosis ultimate kit is available in two configurations. It is also intended for fixation of suture (soft tissue) to bone in the foot and ankle for midfoot reconstruction.
Intended use
The syndesmosis ultimate kit is available in two configurations. It is also intended for fixation of suture (soft tissue) to bone in the foot and ankle for midfoot reconstruction.

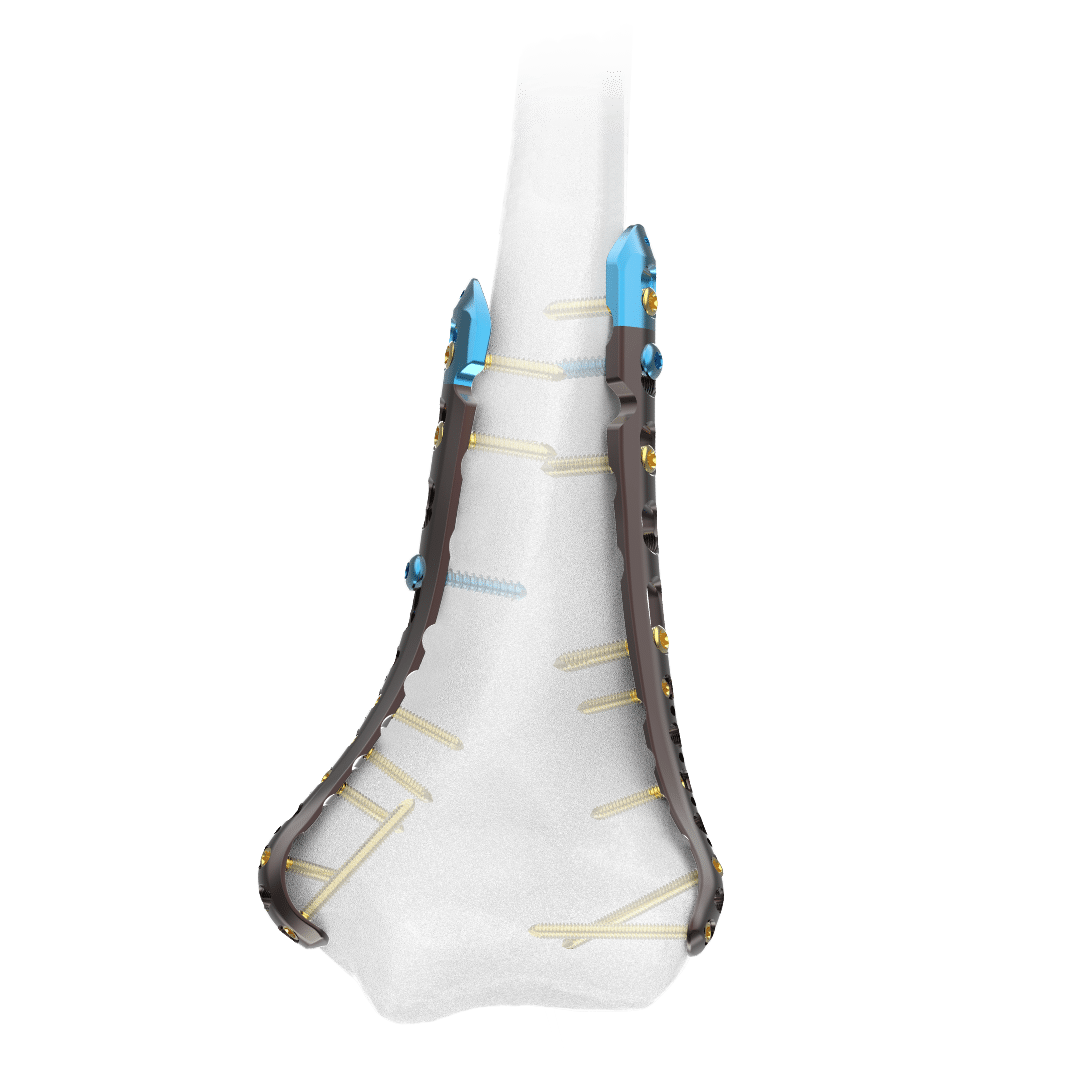

AV Wiselock 2.7 - 3.5mm Small Fragment

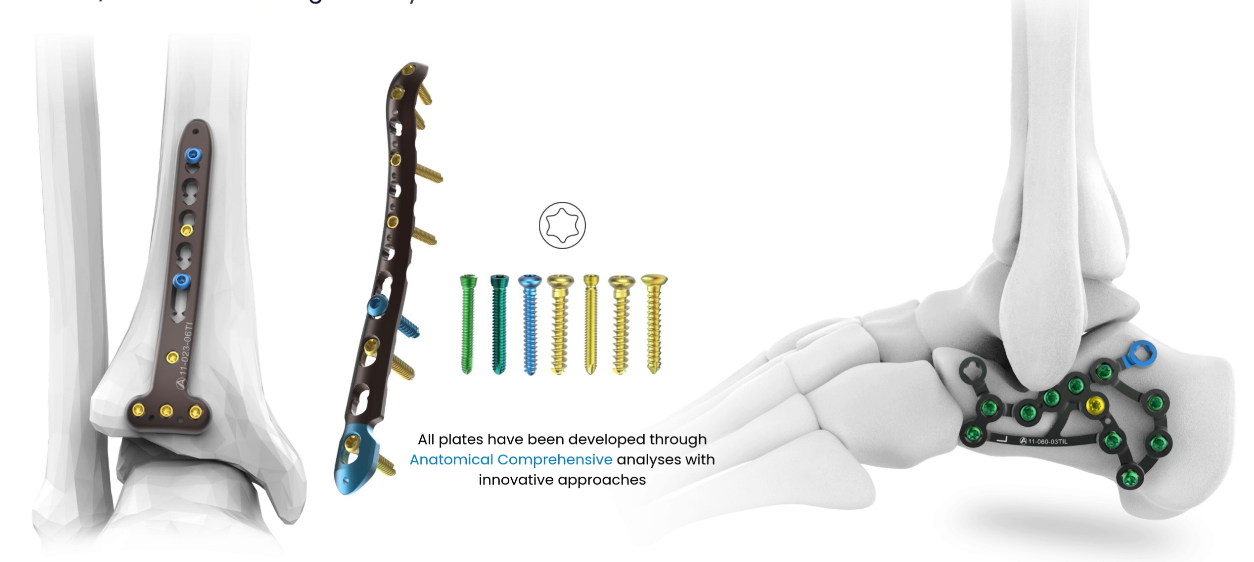

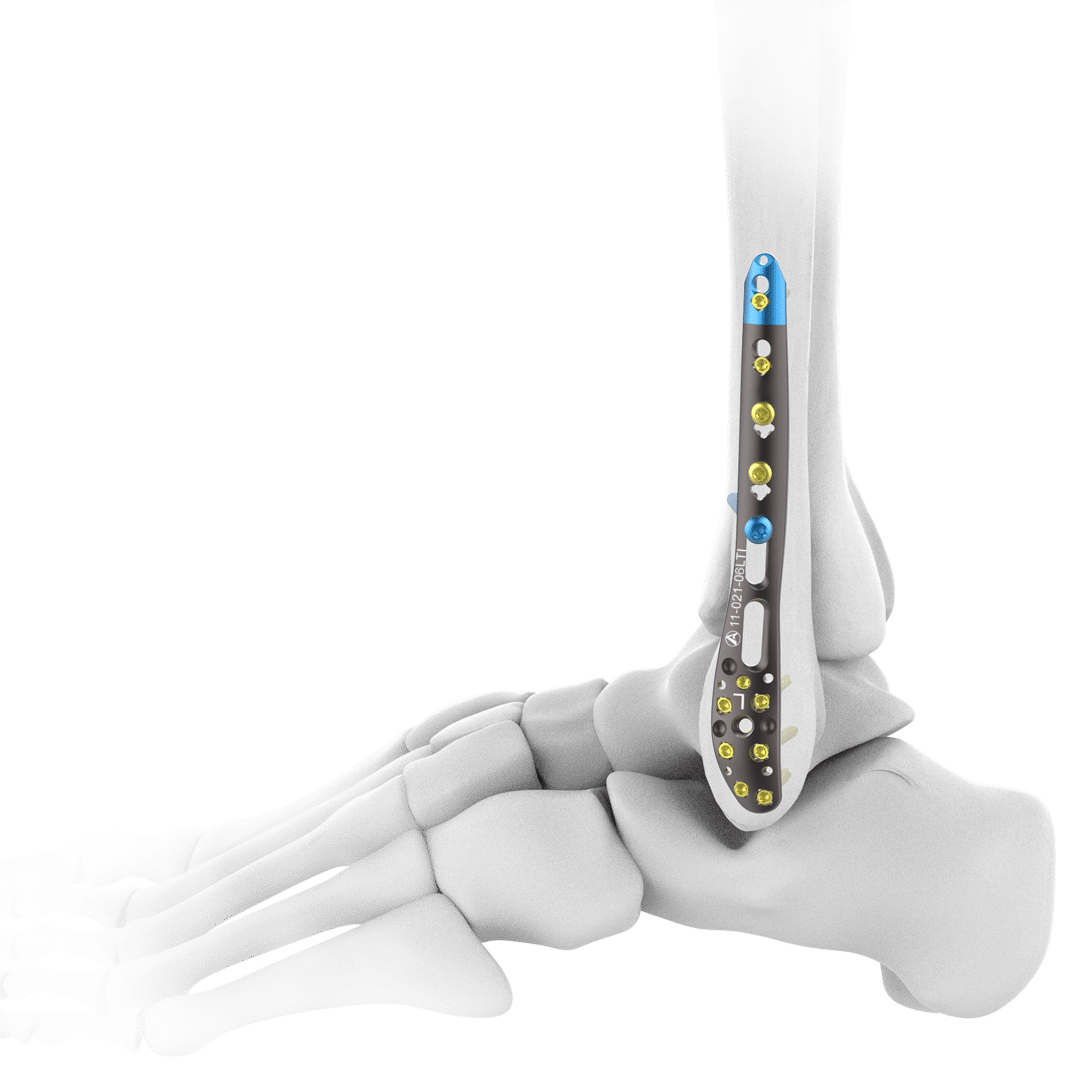

• AV - Wiselock 2.7-3.5mm Small Fragment •
AUXILOCK® Syndesmosis Ultimate Kit can be used for the fixation of Ankle Syndesmosis joint. The versatile design for the kit is ideal for use with our without a fracture plate. The kit is passed through 3.5mm drilling tunnel, from lateral to medial, provides the fixation of oblong shaped button on the medial side and round button on the lateral side of the syndesmosis joint.
PRODUCT FEATURES
Benefits
- The AV-Wiselock small fragment plates are pre-contoured to fit patient’s anatomy.
- Uniform hole spacing
- Left/Right specific
- The plates feature AV-Wiselock holes, with or without the dynamic compression portion.
- Threaded holes for locking screw option
- 2 – 20 holes
- The system include the 2.7mm AV-Wiselock Screw, 3.5 mm locking screws and 3.5mm AV-Wiselock screws for Plate fixation
- Locking screws create a fixed-angle construct, with up to 15° off-nominal axis screw angulation (variable angulation within a 30° cone of angulation)
- Color coded screws and instruments designed to easily identify screw diameter, screw type and corresponding instrumentation.
- Locking screw provides fixation and bone compression
- Fixed Angle Construction
- Minimal Invasive Surgery
- Available in Titanium and Stainless Steel
Intended Use
Fixation of fractures, osteotomies, nonunions of the:
- Clavicle
- Humerus
- Tibia
- Ankle
- Foot
- Elbow

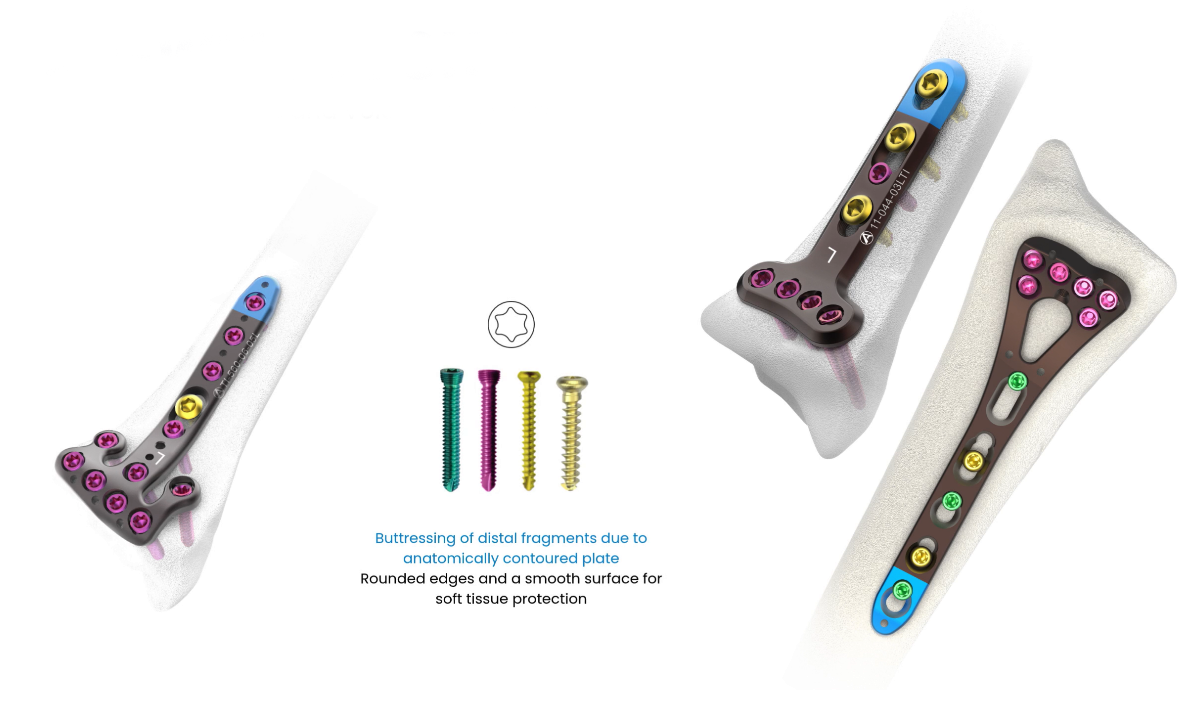

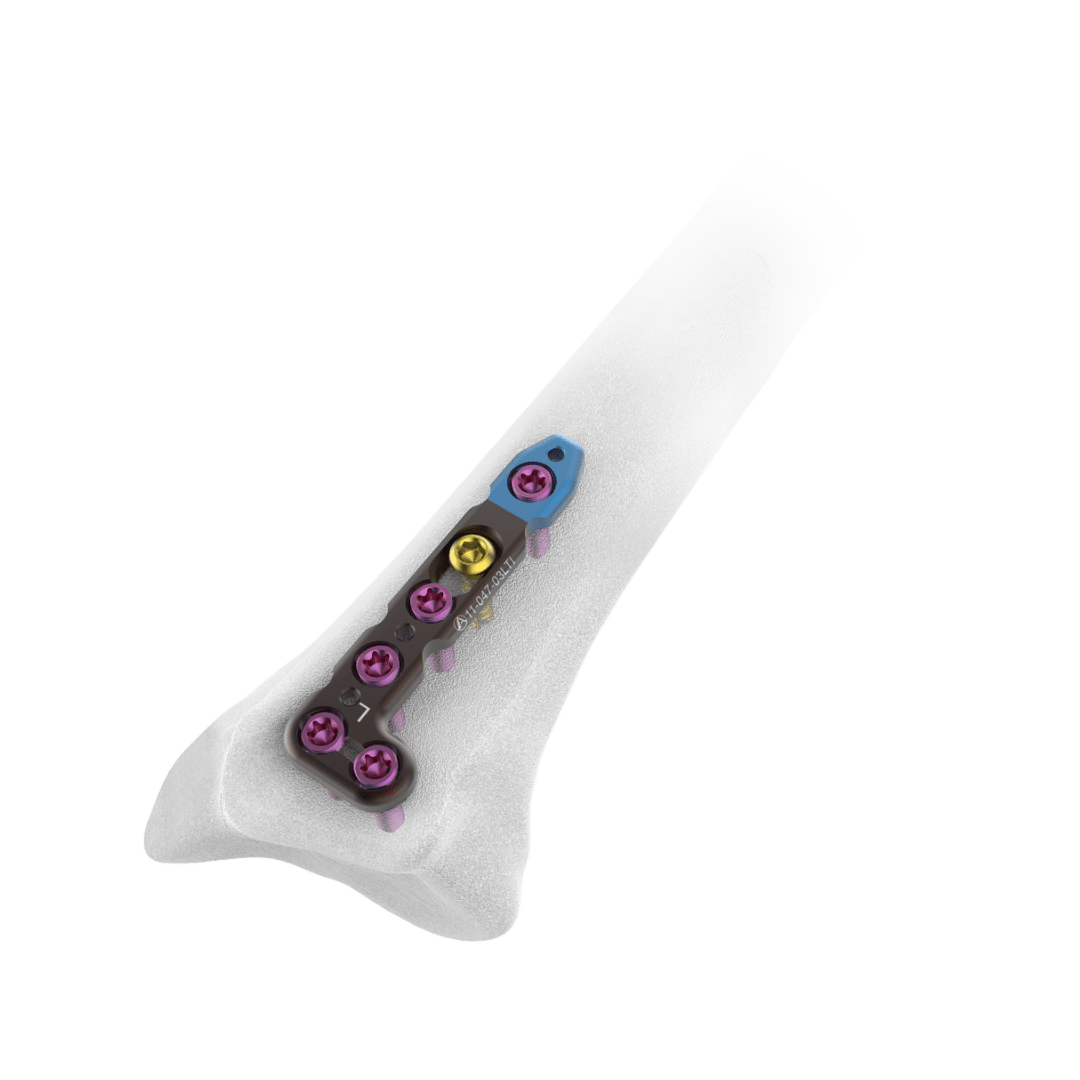

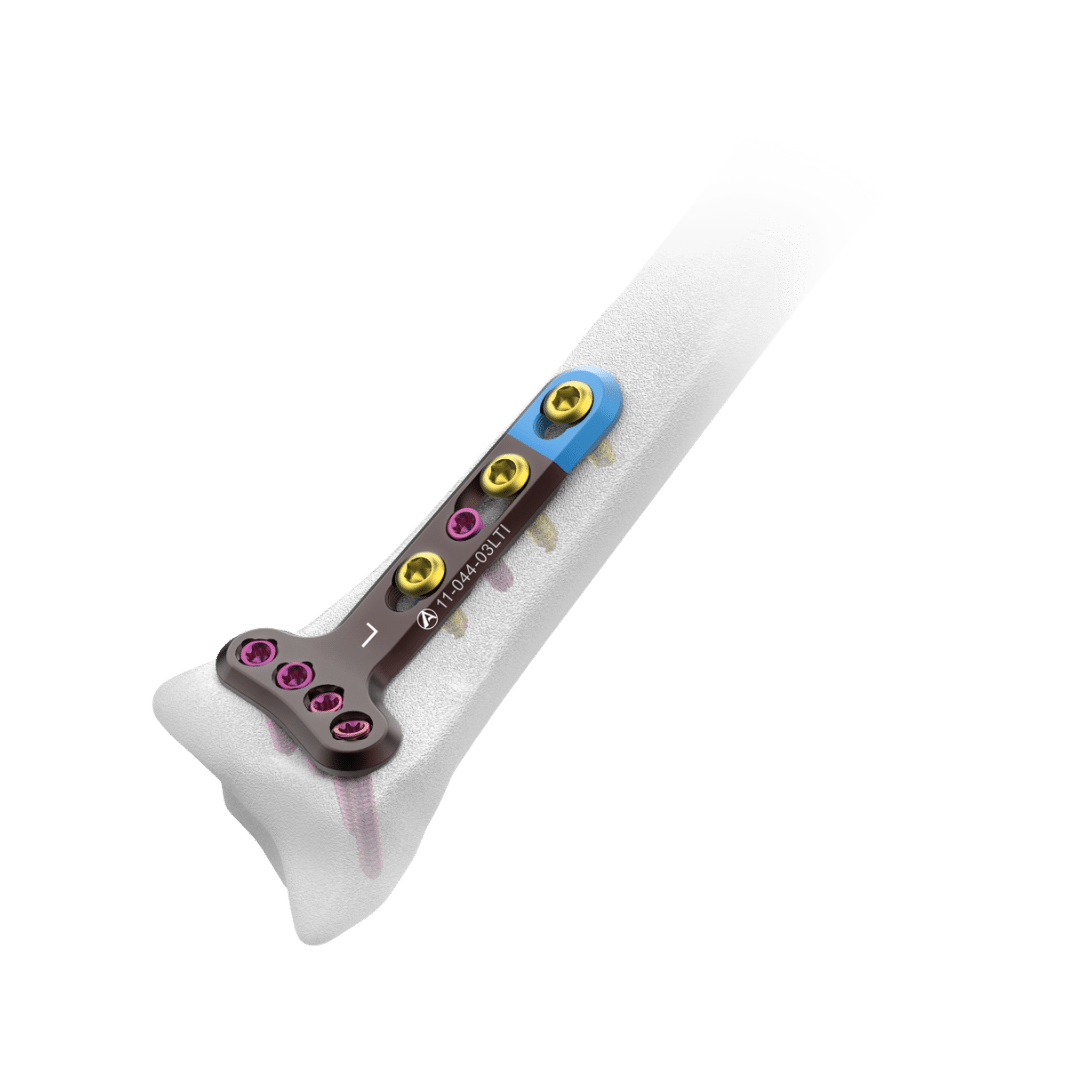

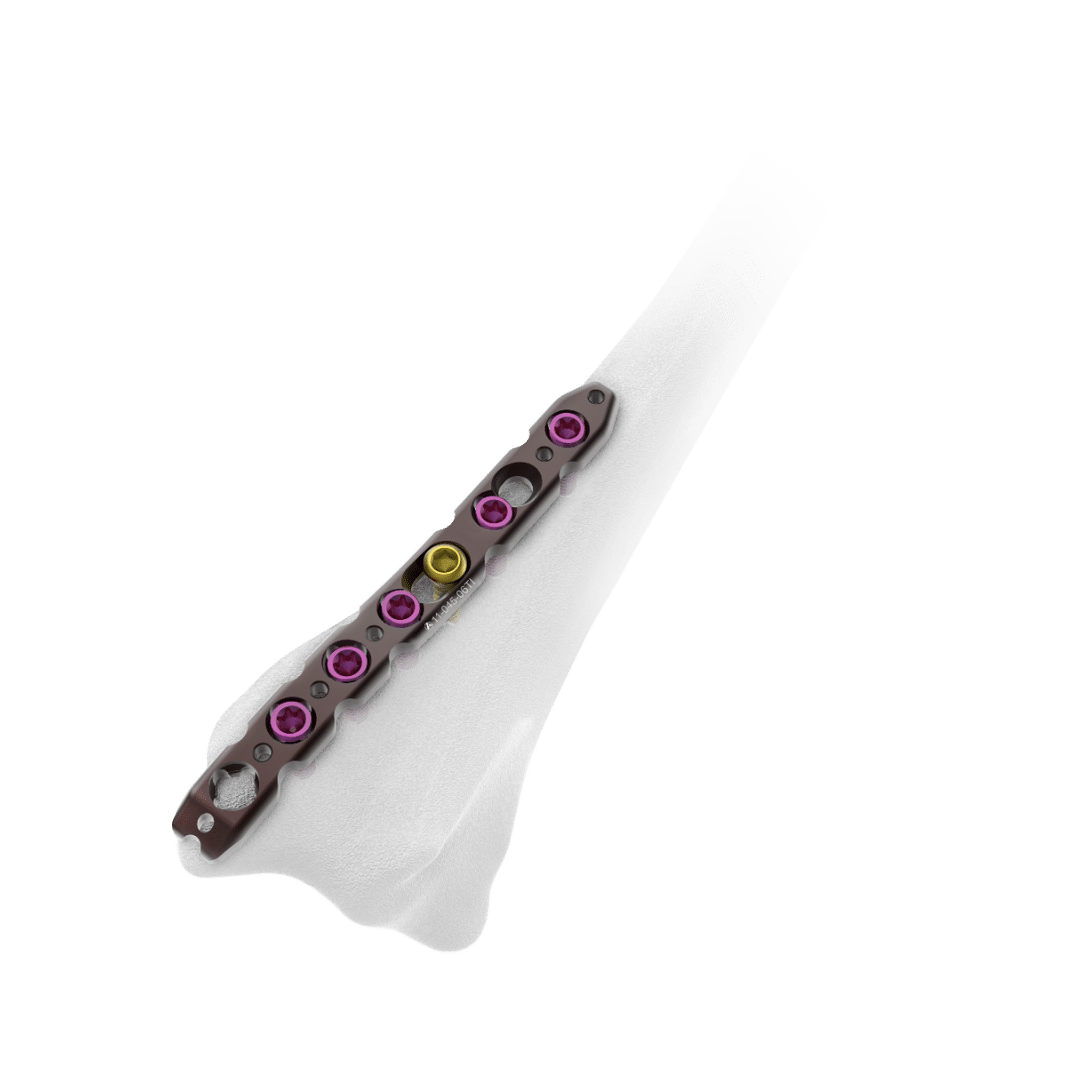

AV Wiselock Distal Radius and Volar Rim System
• 2.4mm AV-Wiselock Distal Radius and Volar Rim System •
The 2.4mm Av-Wiselock Distal Radius and Volar Rim system is a locking plate system for volar distal radius fracture, providing optimal fit for the radius bone. The system provides anatomically designed low-profile plates that resist angular collapse and function as an effective fracture reduction aid.
The system comprises an instrumentation set featuring standard instruments for surgery, that makes the Distal Radius and Volar Rim system efficient and easy to use.
PRODUCT FEATURES
Benefits
- Precontoured plates for an anatomical fit.
- Narrow, Standard and wide plate head options for optimal fit
- Different distal width designs for better fit to individual anatomy.
- Left/right-specific
- Provides sufficient rigidity and stable locking.
- Locking/non-locking option in all screw holes
- Variable angle screw locking mechanism up to ±15°.
- Window for fracture line position
- Guide pin holes for temporary plate fixation.
- Aiming Arm block for accurate drilling angle Volar Distal Radius Locking Plate – Volar Rim Type
Intended Use
2.4mm AV-Wiselock Distal Radius and Volar Rim System is indicated for displaced extra-articular and intra-articular distal radius fracture and corrective osteotomies of the distal radius.
